For more than four decades, the name Reichel/Pugh has been synonymous with the pursuit of results. From IOR, to IMS-era pioneers to IRC thoroughbreds, few design houses have shaped the language of performance quite like this California-based studio. Their boats have not only won races, they have defined them.
For more than four decades, the name Reichel/Pugh has been synonymous with the pursuit of results. From IOR, to IMS-era pioneers to IRC thoroughbreds, few design houses have shaped the language of performance quite like this California-based studio. Their boats have not only won races, they have defined them.
From Secret Men’s Business in 2010, Loki in 2011, Wild Oats XI in 2012, through to Alive’s double victories in 2018 and 2023, Reichel/Pugh yachts have carved a near-mythical presence on the Rolex Sydney Hobart leaderboard. Add to that the likes of URM Group, Chutzpah, and Moneypenny, and the pattern becomes undeniable: a design lineage with extraordinary longevity and adaptability across conditions, rules and generations of sailors.
“Our goal has always been to produce the fastest yachts we can under the various rating rules,” says co-founder Jim Pugh. “They have to be attractive boats, capable across a variety of conditions and they have to finish races. That’s the constant.”
Rule-Bound Beginnings
When John Reichel and Jim Pugh opened their studio in 1983, IOR was the international rating rule. In the nineties, yacht design became shackled by the IMS rule, a system that used *velocity prediction programs (VPPs) to shape fleets that were, by today’s standards, artificially slow. Designers found themselves creating boats that were slowed down by the VPP rule.
“It was very restrictive,” Pugh recalls. “Under IMS, you were designing for a VPP that rewarded slower design configurations. You couldn’t have too much stability (beam) or depth (keel). The rule didn’t allow us to build fast yachts, as you would get punished in your rating.
The breakthrough came with the rise of IRC, a rule that freed designers to create hulls that truly moved. “IRC opened things up,” says Pugh. “Suddenly you could design fast boats. Not just for light airs or flat water, but real offshore performers. The Pac52s, Fast40s, Maxi 72, those boats could now be both quick and capable.”
That turning point paved the way for a design philosophy that changed the way we looked at yacht racing. Yacht designers, builders, sailmakers and sailors all had to adapt and evolve. Performance and speeds skyrocketed and laid the path for us today.
A Design Language of Intent
When prompted whether Pugh thinks that sailors around the world can recognise an R/P hull, the idea of a single, fixed aesthetic misses the point.
“I’m not sure there is a Reichel/Pugh hull,” he says. “Most of our boats are designed to a very specific brief. It depends on where they’ll race, what the average wind range is, the kind of courses they’ll sail. A yacht for the Transpac is a very different animal to one for the Hobart or the Mediterranean.”
However, it wasn’t always this way: “Before yacht racing evolved into what it is today, an owner would approach us and we’d build a yacht from scratch. Now, with so many professional teams bringing their own expertise, the landscape has changed, there’s a wealth of capable people in the industry and everyone contributes. Design briefs can be very detailed to a specific cause.”
From Wild Oats to Alive: A Line of Winners
The design discipline for R/P has produced an extraordinary lineage of race-winning yachts around the world, many of which have defined their eras. In the last 20 years alone, Reichel/Pugh designs have dominated many races globally and the Rolex Sydney Hobart leaderboard could not escape either.
Rolex Sydney Hobart Overall results (past 15 years) – Reichel/Pugh designs:
- 2023: 1st Alive, 2nd URM Group, 3rd Moneypenny
- 2018: 1st Alive, 2nd Wild Oats X, 3rd Voodoo
- 2014: 2nd Chutzpah
- 2012: 1st Wild Oats XI, 2nd Loki, 3rd Black Jack
- 2011: 1st Loki
- 2010: 1st Secret Men’s Business
That record speaks to more than just isolated coincidences, it’s proof of a design philosophy that endures across owners, conditions, and decades. Alive, a Reichel/Pugh 66 previously called Stark Raving Mad was built in 2006 by Westerly Yachts, California, remains the benchmark for offshore all-rounders. Under owner Phillip Turner and skipper Duncan Hine, she’s claimed two overall victories and continues to feature at the pointy end of every major race. URM Group and Moneypenny, both drawn from the same design lineage, have kept the firm’s fingerprints firmly on the podium. URM Group, previously Shockwave, has won the Bermuda Race twice, with overall wins in the Giraglia Race, the Caribbean 600 and the Maxi Rolex Cup.
“Australian racing is incredibly competitive,” says Pugh. “The season builds around the Hobart, and crews put in a huge effort, optimising, refining, learning every year. They’ve gotten very, very good at it. A good team that knows the boat well is as important as the design itself when it comes to completing a Hobart race.”
The Art and Science of Speed
For all the mythology, Reichel/Pugh’s success is rooted in both instinct and analysis. While computational tools have revolutionised the way modern yachts are developed, Pugh insists that technology refines, but does not invent.

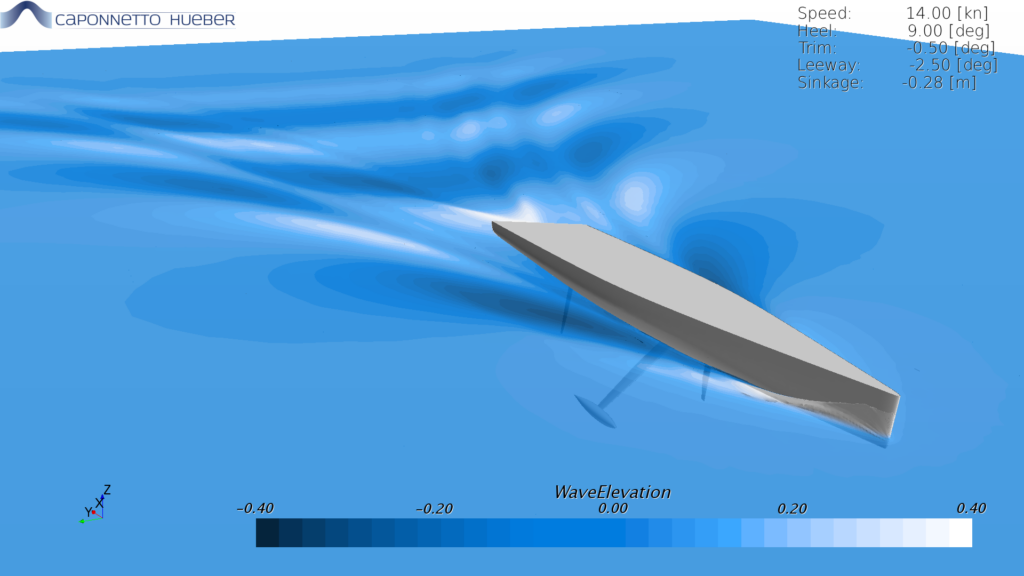

“The tools now are extraordinary compared to 25 years ago,” he says. “We use great *CFD (Computational Fluid Dynamics) consultants and aero-hydro modelling. But you still need a solid baseline design, a hull that’s fundamentally right. The computer refines; it doesn’t invent, but it makes the process incredibly accurate.”
That process begins with the creation of several baseline designs of the hull, with variations in beam, volume distribution, stability, or rig position, each tested virtually, rated and unrated against regatta weather models and past designs. The most promising candidate then becomes the physical baseline for performance prediction and optimisation. “Having a well thought out CFD study is inexpensive compared to the cost of a build,” says Pugh, “but incredibly valuable. It gives you confidence that when you commit to the real boat, you’re starting from something proven. Having the best aero forces developed by your sail designer, when combined with hydro forces is critical to getting accurate performance prediction. It has the added benefit of sail design development prior to your sails being built.”
Evolution, Not Revolution
Reichel/Pugh’s reputation as innovators is well-earned, but their evolution has been deliberate rather than explosive. The studio’s major leaps have always come at natural junctures, when technology, materials, or racing rules created a new design space worth exploring.
The early 2000s brought one such leap. In 2002, Wild Oats IX, a 60-footer, marked Reichel/Pugh’s first offshore canting-keel design under IRC, a precursor to the iconic 100-footer that would dominate the Hobart. “That owner (the late Bob Oatley) came to us and said, I’ll build a boat, but it has to be different,” Pugh recalls. “That project led directly to Alfa Romeo, then Wild Oats XI. Each one built on what came before.”
That iterative approach, where every hull refines the lessons of the last, has defined the firm’s enduring success. “The only thing that hasn’t changed,” says Pugh, “is that what we design must win races.”
Ballast, Balance, and the Full Circle of Technology
Few designers have navigated the shifts in ballast philosophy as deftly as Reichel/Pugh. From the early days of water-ballasted sleds to the fully canting maxis of the 2000s, their designs have spanned and often led every major transition.
“We went through all those different ballasting technologies,” Pugh recalls. “The 6-ton water ballast 90’ Alfa Romeo and later Rambler were hugely successful. Then we moved into the 100’ canting keels, making sure they were safe and reliable offshore.”
Now, as shorthanded racing and production performance yachts gain popularity, Pugh sees water ballast making a serious return. “It has become very attractive again. For smaller crews or double-handed racing, it provides added stability, while avoiding the expense and complexity of canting systems. We’ve almost come full circle.”
Picking a Favourite

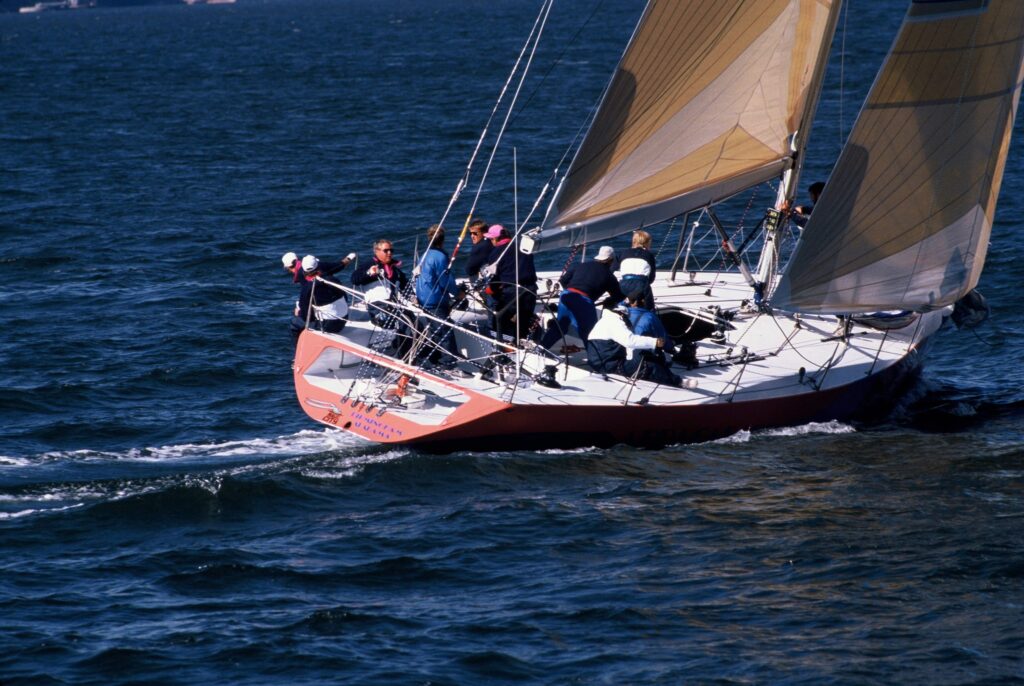

When asked if one project stands out for Pugh, he recalls the 50-footer Abracadabra, which was built in 1989. “It was hard to break into that class,” Pugh recalls. “We’d been building West Coast sleds and wanted to go to the East Coast of the USA. The owner put his faith in us, it was our first construction with John McConaghy and we won 50’ World Championships in 1990 and 1991. I was tactician that first year and I was nervous as hell. Boats were simpler then, but it was a great program and a great boat, we managed to break into the class and dominate. The total package.”
That mix of technical mastery and human collaboration remains central to every Reichel/Pugh design. “We get very involved with builders,” Pugh says. “Often daily. Even if we don’t do the structural design ourselves, it still comes through us, we want to make sure it’s fully optimised and built right.”
The Constant
Looking ahead, that philosophy continues to shape the studio’s ambitions. The team is finalising a new Admiral’s Cup Class 2 design, developed independently to reintroduce high-quality competition in the 40–45ft range. “It’s designed for the Fastnet, Channel Race and windward–leeward courses. Offshore performance is crucial,” says Pugh. “We intend to have a limited run built by the talented San Giorgio Marine Srl, in Genoa. It’s an exciting project, getting back to that size range, it’s going back to our roots, we would love to see one in the Rolex Sydney Hobart Race.”
At the same time, the studio is finishing development of a next generation 100’ grand prix canting ballast design and an 80-metre triple-masted schooner, a superyacht that merges performance design with aesthetic ambition. “These are completely different markets,” he admits, “but the principle is the same: it has to be fast, beautiful, and capable of finishing.”
After forty years, Jim Pugh has watched rating rules change, materials evolve, and boats transform from handcrafted wood to carbon sculptures shaped by code. But through it all, one truth remains.
“The only part that hasn’t changed,” he says quietly, “is that what we design must win races.”
And from Secret Men’s Business to Alive, from Wild Oats XI to URM Group, the record speaks for itself.
Reichel/Pugh yachts don’t just chase speed and results, they define it.
Glossary
*VPP: A Velocity Prediction Program is a computer model used to estimate a yacht’s potential speed at different wind angles and strengths. It analyses the balance between aerodynamic and hydrodynamic forces, such as sail power, hull resistance, and stability, to predict how fast a boat can theoretically sail under given conditions.
*CFD: Computational Fluid Dynamics is a branch of fluid mechanics that uses computer simulations to analyse how gases and liquids move around objects. In yacht design, CFD helps engineers study how air flows over sails and how water moves around the hull, allowing them to optimise shapes for better speed, efficiency, and stability without relying solely on physical testing.
